BIOSHREDDER EP 5500 SHARK 5 WILLIBALD
5 TIME MORE PERFORMING
5 TIME MORE PREDATOR
TECHNICAL DATA
Builder: WILLIBALD
Model: EP 5500 SHARK (V-VERSION VERFÜGBAR!)
Motor: MAN 382 kW (520 HP)

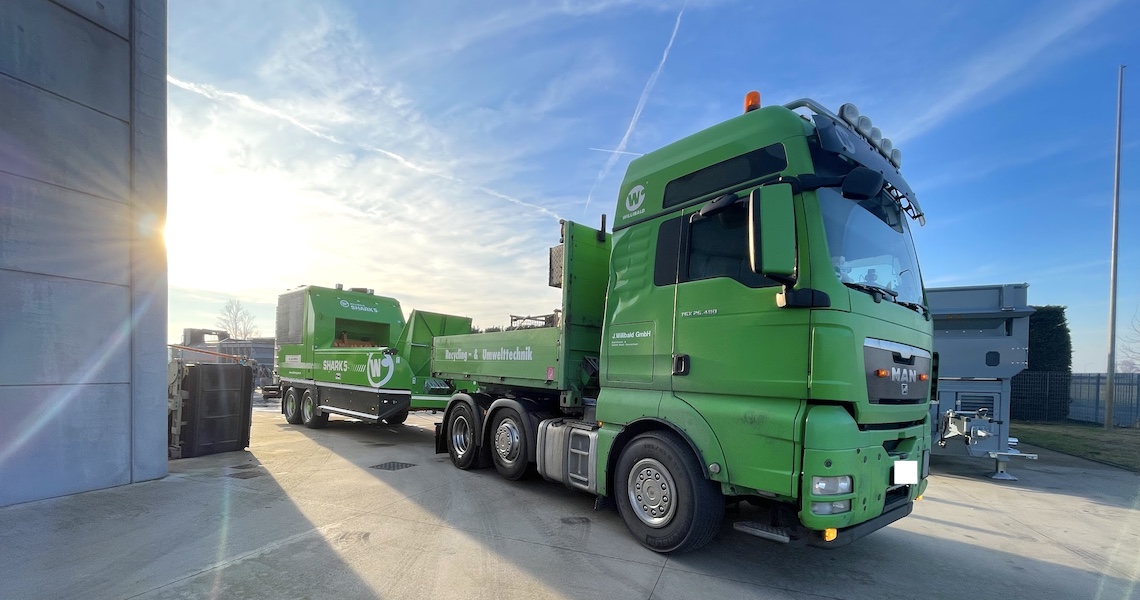

Transport Data: W. 9.950 mm x L. 2.500 mm x H. 4.000 mm
Operative Data: W. 11.750 mm x L. 2.500 mm x H. 4.500 mm
Hourly Production: 250 m³/h
Rotor: 48 HAMMER (24 dx – 24 sx) 40 HAMMER (20 dx – 20 sx)
Rotor Data: L. 1.450 mm x D. 1.000 mm
N° RPM Rotor: 1.300 giri/min
Discharge Belt: 4.500 mm
Fuel Tank: 450 L
Weight: 19.000 Kg

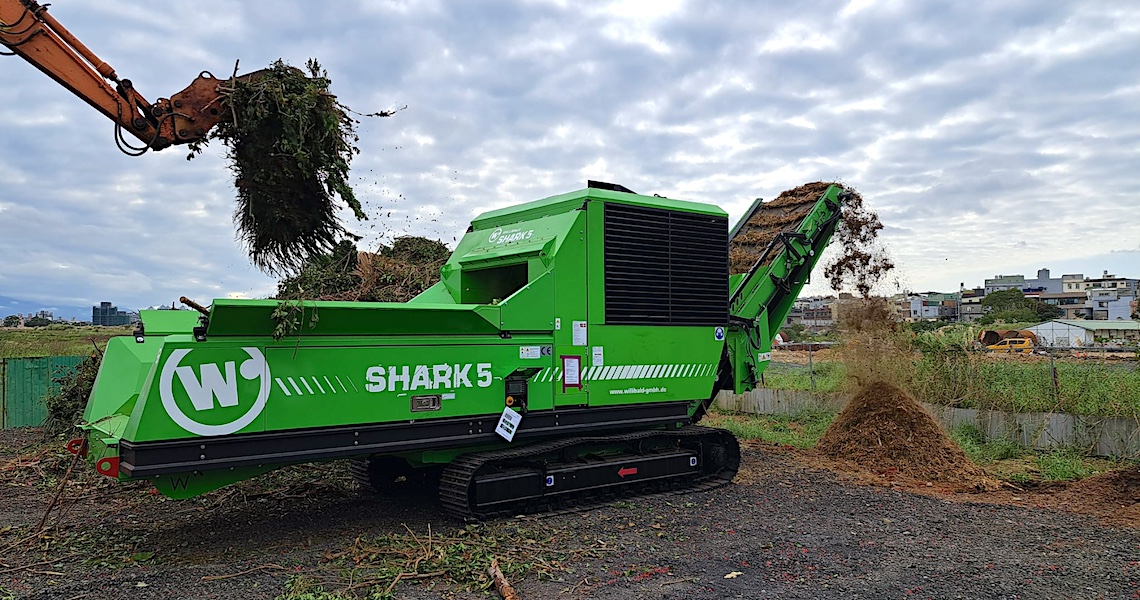

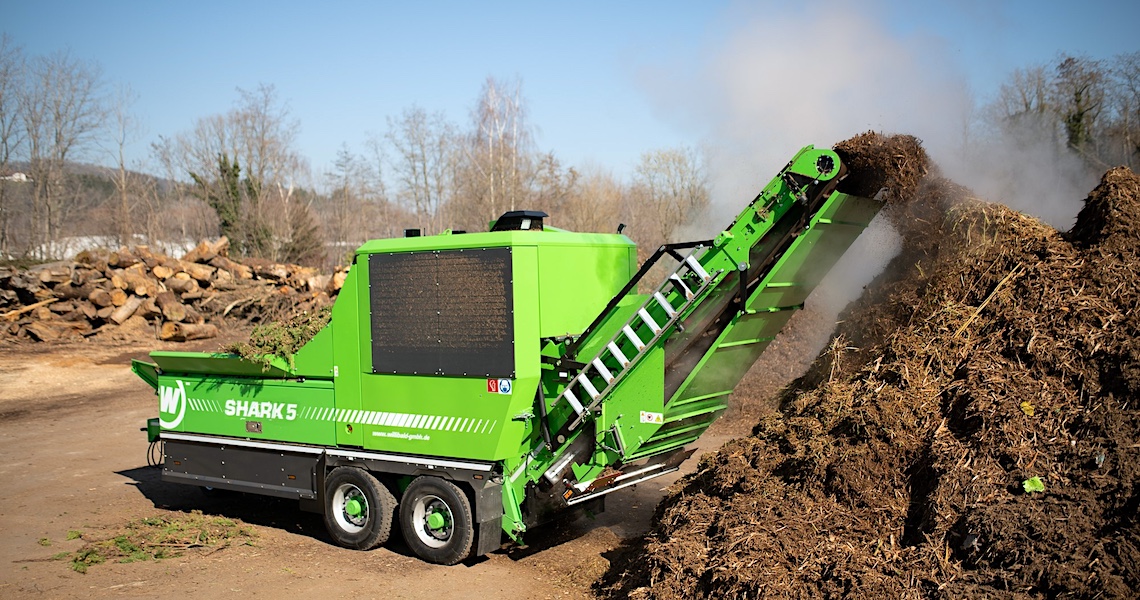

The EP 5500 SHARK 5 is a high-capacity professional Bioshredder designed for green waste processing, biomass volume reduction, and compost refinement. Despite its compact design, it delivers exceptional productivity, making it ideal for waste treatment companies and composting facilities.
Technical highlights include a 520 HP engine, a reinforced rotor with increased structural thickness for enhanced durability, an enlarged feed roller opening for processing large-diameter logs, and a belt-driven transmission with clutch-controlled rotor engagement
The shredding process takes place within a reinforced chamber optimized for precision and consistency. Key features include three interchangeable post-shredding grids for particle size control, a counter-comb system to prevent clogging caused by foliage, and a discharge conveyor with an extended outlet and anti-projection (“anti-sparo”) design for safe material handling.
The SHARK 5 is equipped with the latest safety technologies, ensuring full protection against occupational hazards and mechanical damage.
