SHEAR WITH BLADE CL SERIES WESTTECH
DYNAMICS
EFFICIENT
COMPACT
INIMITABLE
The Woodcracker CL Series Blade Shears combine lightness, robustness, and cost effectiveness. Key features include efficient handling of stumps with densely growing shoots, reduced hydraulic demand compared to disc cutters, a lightweight design with lower acquisition costs, the availability of an optional collection clamp for accumulation and handling support, and enhanced operational efficiency during cutting cycles. The series is available in three models: CL190, CL260, and CL320.
TECHNICAL DATA
Builder: WESTTECH
Manufacture: AUSTRIA
Modell: CL 190
Diameter Cutting Soft Wood: 230 mm
Diameter Cutting Hard Wood: 190 mm
Gripper Opening/Diameter of Shear: 685 mm
Weight Base: 210 Kg
Pump Flow Capacity: 40 l/min – 80 l/min
Operating Pressure: 250 bar
Weight Vehicle Carrier: 2,5 ton – 7,5 ton
TECHNICAL DATA
Builder: WESTTECH
Manufacture: AUSTRIA

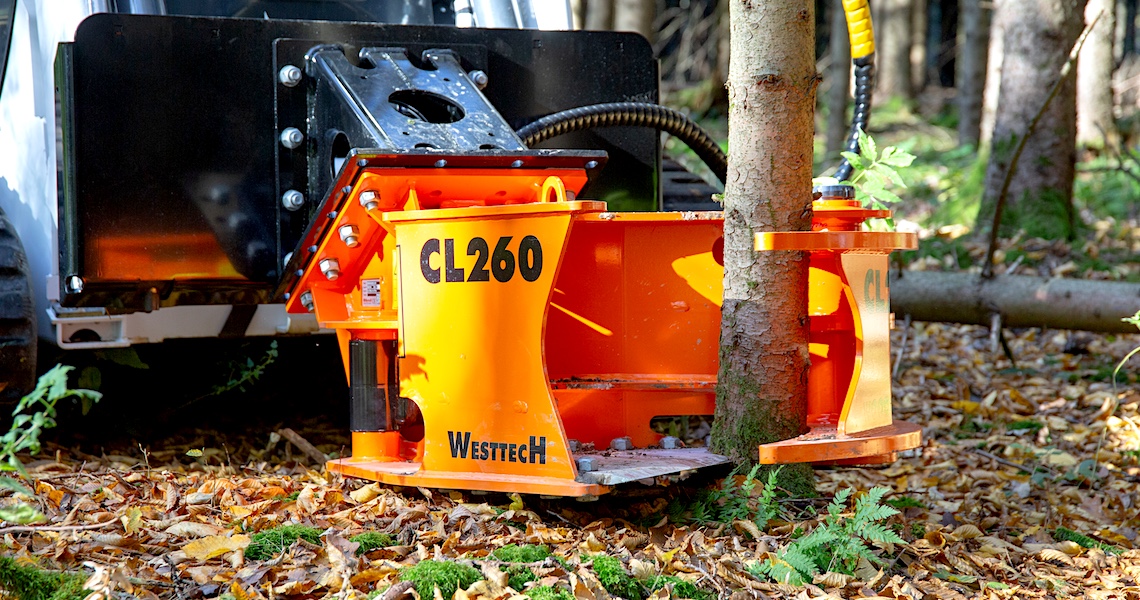

Modell: CL 260
Diameter Cutting Soft Wood: 320 mm
Diameter Cutting Hard Wood: 260 mm
Gripper Opening/Diameter of Shear: 760 mm
Weight Base: 350 Kg
Pump Flow Capacity: 50 l/min – 100 l/min
Operating Pressure: 280 bar
Weight Vehicle Carrier: 6 ton – 14 ton
TECHNICAL DATA
Builder: WESTTECH
Manufacture: AUSTRIA

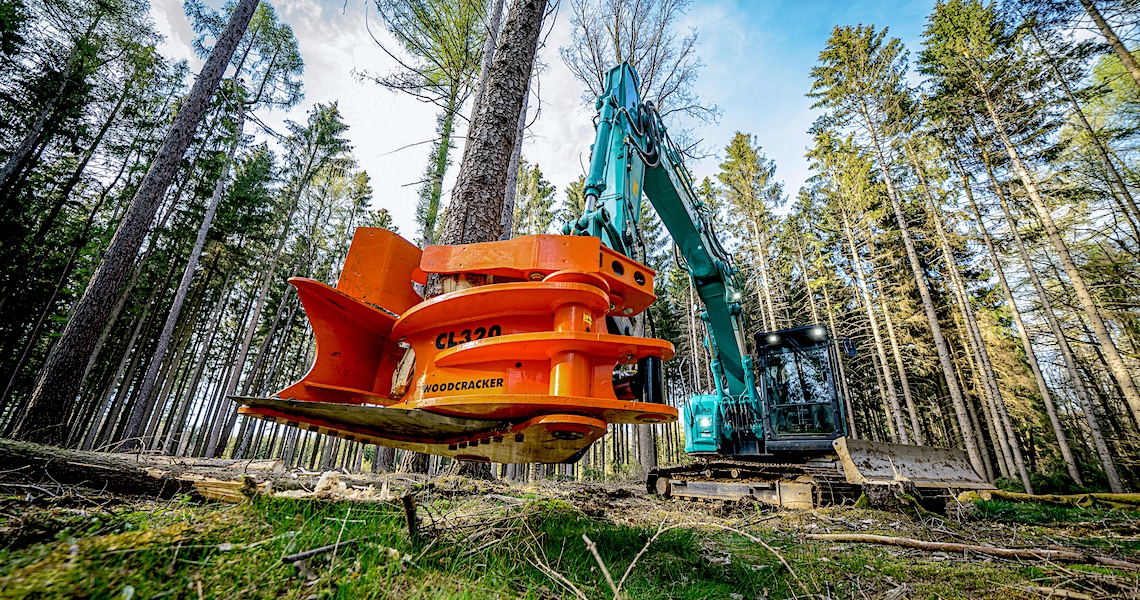

Modell: CL 320
Diameter Cutting Soft Wood: 400 mm
Diameter Cutting Hard Wood: 320 mm
Gripper Opening/Diameter of Shear: 1.060 mm
Weight Base: 620 Kg
Pump Flow Capacity: 70 l/min – 150 l/min
Operating Pressure: 280 bar
Weight Vehicle Carrier: 12 ton – 20 ton
