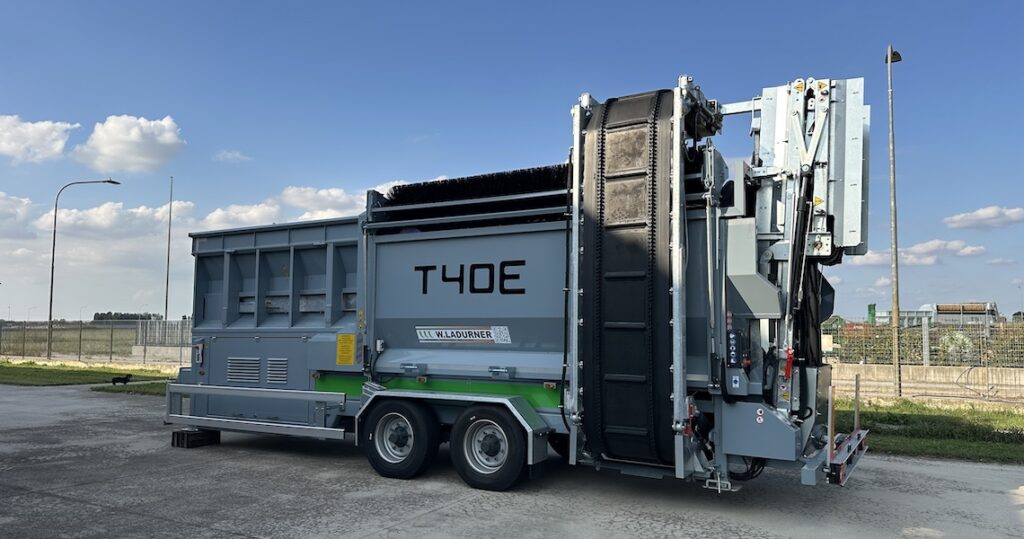

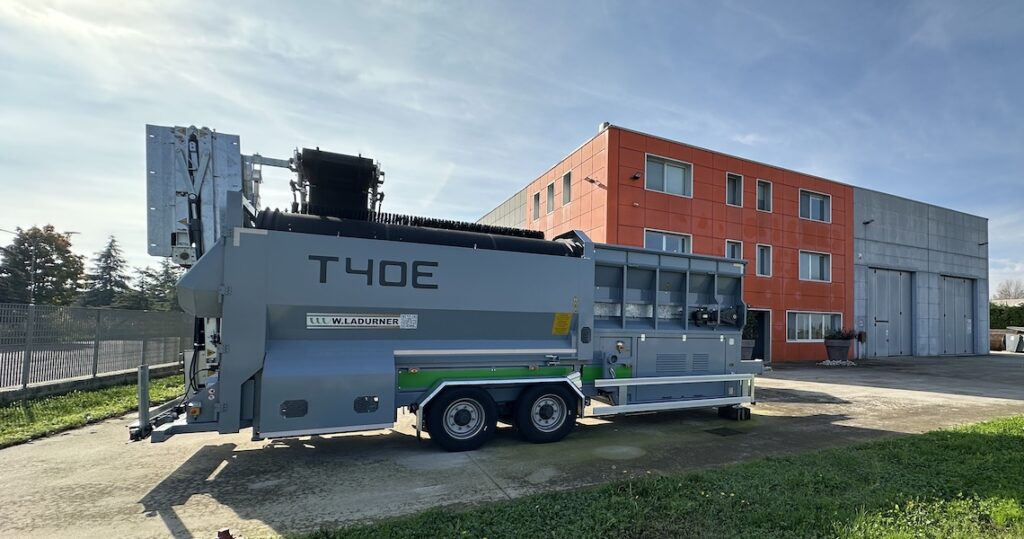

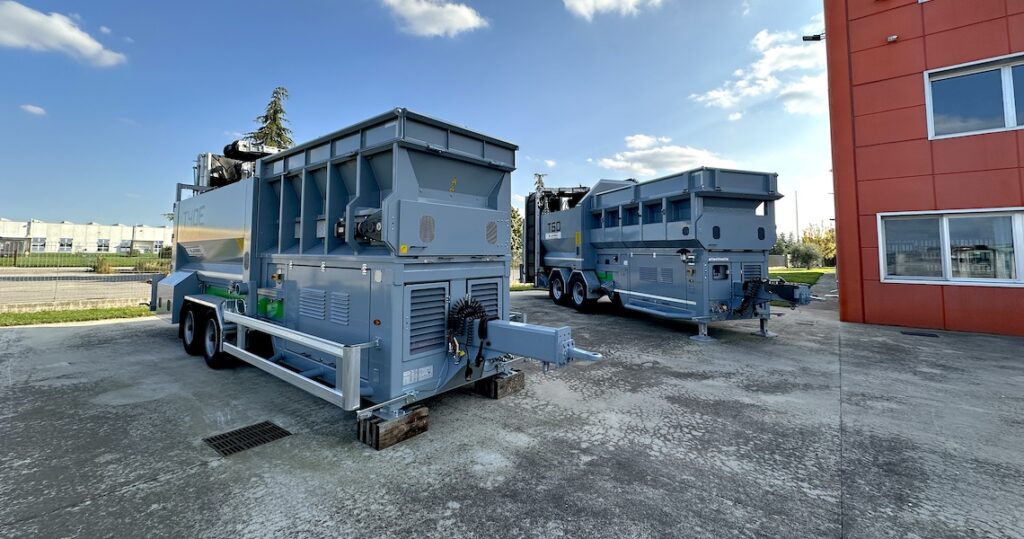

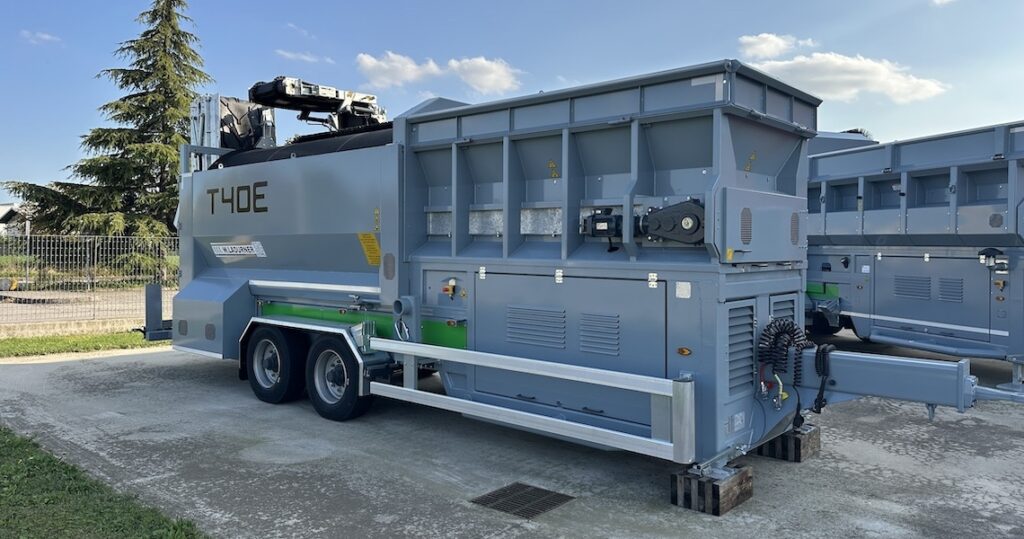

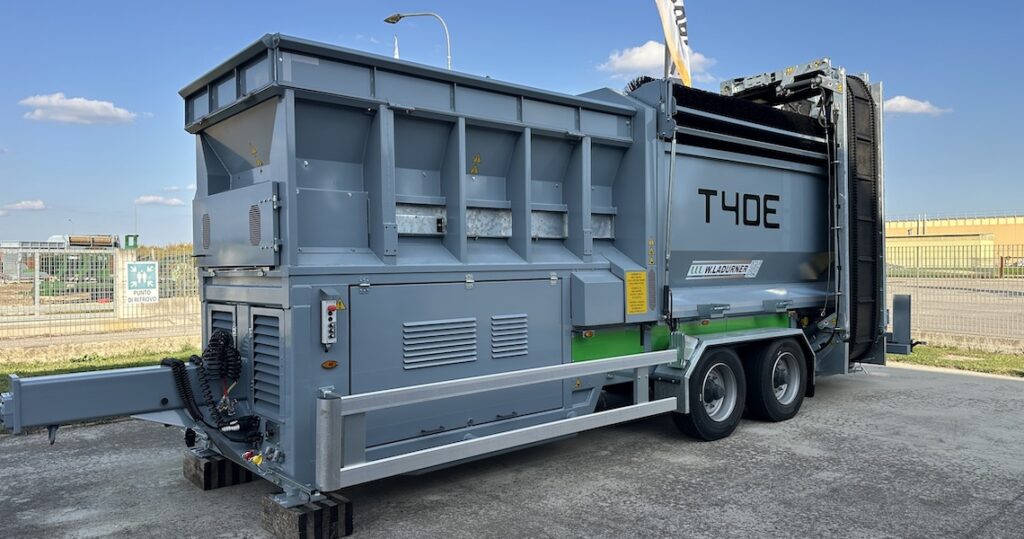

ROTARY SCREEN T 40 SIEBOTEC
PRODUCTIVE AND VERSATILE
TECHNICAL DATA
Builder: Siebotec

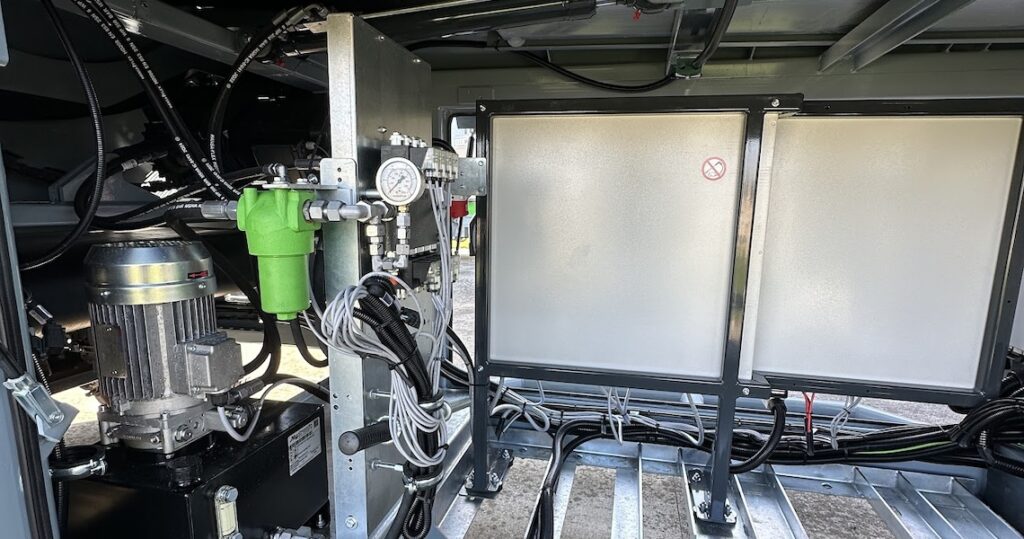

Model: T 40 (even electric!)
Motor: CAT 2.2 EU5 45 kW (70 HP)
Transp. Data: W. 9.950 mm x L. 2.500 mm x H. 3.900 mm
Operat. Data: W. 13.110 mm x L. 6.250 mm x H. 3.350 mm
Hourly Production: 100 m³/h
Screening: TROMMEL L. 4.200 mm x D. 1.600 mm
Hole Trommel: from 10 mm to 80 mm
Thickness Trommel: from 6 mm to 12 mm
Hopper Height: 2.675 mm
Hopper Capacity: 3.5 m³
Coarse Discharge Belt: W. 3.400 mm x L. 800 mm
Fine Discharge Belt: L. 6.700 mm x L. 800 mm
Fuel Tank: 300 L
Weight: 13.000 Kg
The new SIEBO T 40 Siebotec Rotary Screen is a latest generation screener. It has all the new features of the rotary screens on the market with the addition of some innovations that make it exclusive in its sector. With the new state-of-the-art CAT diesel engine, the T 50 has all the advantages of “big machines”. Designed for all types of materials. It can therefore screen materials such as compost, plasterboard, earth, sand, inert rubble, wood chips, etc… without any difficulty. The T 50 is a powerful machine with compact dimensions thanks to its high quality equipment and its well thought out execution.
Technical innovations compared to other versions on the market:
– The new CAT C3.6 EU Stufe 5 engine respects the environment, polluting less.

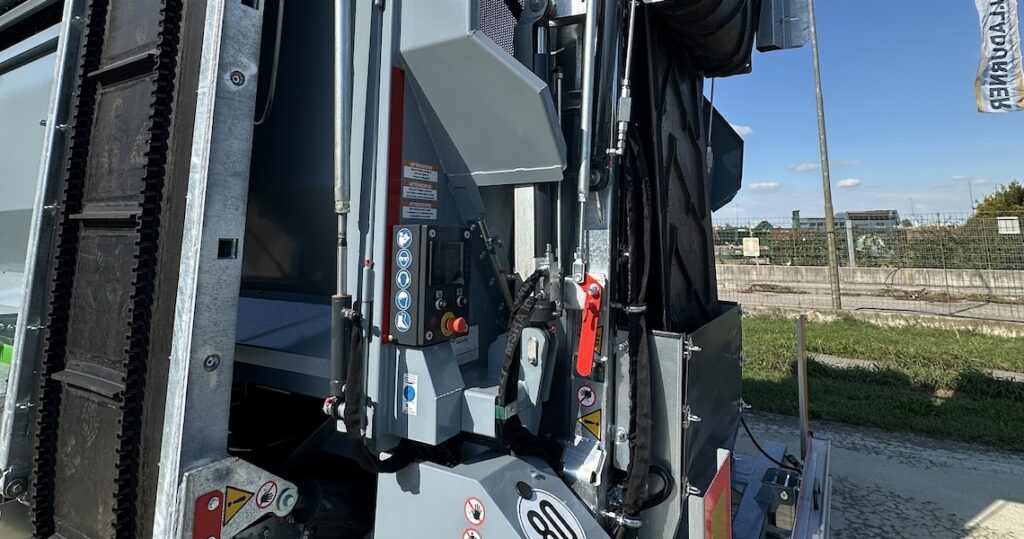

– 12/24 V STANDARD LED street lighting.Significantly smaller, more practical and neater IFM display.
– New trommel transmission requiring significantly lower pressure, cable-free hydraulic preload.
– Maintenance free bearings (except for the hopper belt).
– Optional: drum lifting arms with 2 hydraulic cylinders for easy drum replacement.
– SIEBO technology represents the combination of compact measurements and excellent screening performance.
– Optional: deplasticiser, in electric (10 kW) or hydraulic (30 L oil x 150 bar pressure) version, to be fitted on the oversize belt in case of impurities present during screening. It blows air and sucks up the plastic material from above and conveys it elsewhere. In this way, the material screened on the oversize belt comes out clean and of the grain size chosen according to the drum.
The machine is equipped with the latest protection devices against accidents at work and against damage to the machine itself.
